3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process

Product Categories
Shenzhen Waterun Technology Co., Ltd.
Contact Now

3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process

Brand Name : Waterun

Model Number : S5331D

Place of Origin : China

MOQ : 1set

Price : USD5000.00/set

Payment Terms : L/C, T/T, Western Union, MoneyGram,

Supply Ability : 10000sets/month

Delivery Time : 12-15 working days

Packaging Details : 91x66x102cm 102kg/ctn/set Wooden frame

Name : Automatic Soldering Machine

Model : S5331D

Solder Joint Range : X500*Y1/400*Y2/400*Z100mm

Solder Time : 1.0-1.5s/point

Repeatability Accuracy : ±0.02mm

Solder Wire Diameter : 0.5, 0.6, 0.8, 1.0, 1.2mm

Air Source : 0.4-0.6MPA

Axis : 4

Program Capacity : 999 files, each file can save up to 999 points

Dimensions : 820 x 600 x 800mm

Weight : 65kg

Contact Now

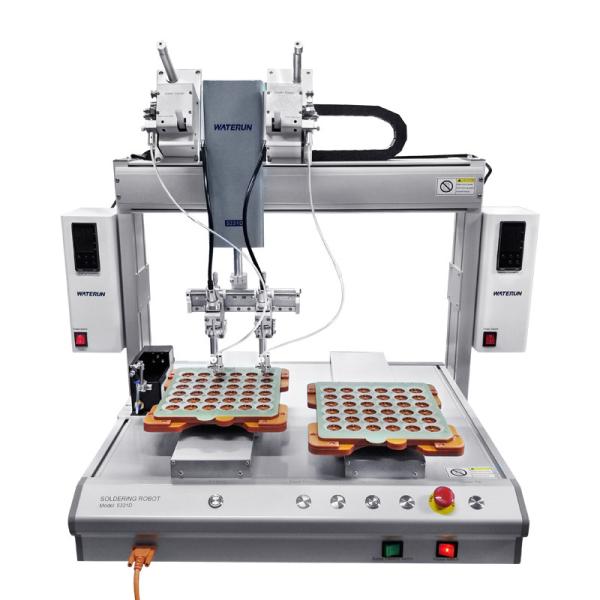

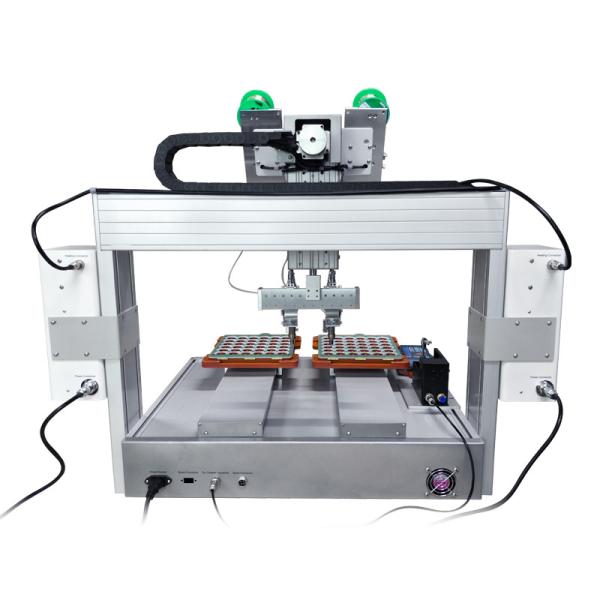

Desktop Robot, Double Y-axis Bench-top automatic Soldering Robot

Products Description:

3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process

3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process

3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process

3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process

Features:


1. Provide the best solution for soldering jobs on lead-free, heat disspating PCB, and high thermal capacity components

2. The heating systerm adopts Weller heater and soldering tip. The consumble parts are low cost.

3. The soldering iron unit can be multi-directionally adjusted, which can protect the PCB and components from damage.

4. Numerically controlled temperature(static air condition: ±1 degree)

5. With the hadheld LCD Teaching Pendant, the programming is simple and easy to learn.

6. In the soldering process, the solder tip has rapid heat recovery and a long life span.

7. Saves 30% of the solder consumption comparing with manual soldering.

8. Applicable for different product, soldering temperature can be set freely.


Applications:

It is suitable for all kinds of soldering process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.

Model
S5331D
Voltage
110V / 220V AC
Solder Joint Range
X500*Y1/400*Y2/400*Z100mm (X x Y1 X Y2 x Z )
Solder Time
1.0 - 1.5s / point
Repeatability Accuracy
±0.02 mm
Solder Wire Diameter
0.5, 0.6, 0.8, 1.0, 1.2
Air Source
0.4 - 0.6 MPA
Axis
4
Program Capacity
999 files, each file can save up to 999 points
Diameter
720x400x820mm (W x D x H )
Weight
65 kgs

Our Service

Best Quality

100% inspection before shipments.

Zero mistake is our goal.

Cost Down

we always offer competitive prices and help our customers to cost down.

Fast Delivery

We keep a lot of stock for regular products.

Our Company
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
Packing & Delivery
Item
desktop screw tightening robot, double Y-axis screw fastening robot
Package
1 set into one wooden carton as safety condition
Delivery
about 20 working days
Payment
Bank, Westerun Union, Paypal
Port
Shenzhen
Shipment
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
Our Certifications
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
Company Introduction
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer small value sample for free charge but do not pay the cost of freight.

3 Axis USB Soldering Machine Automatic , Bench Top Robotic Soldering Process
